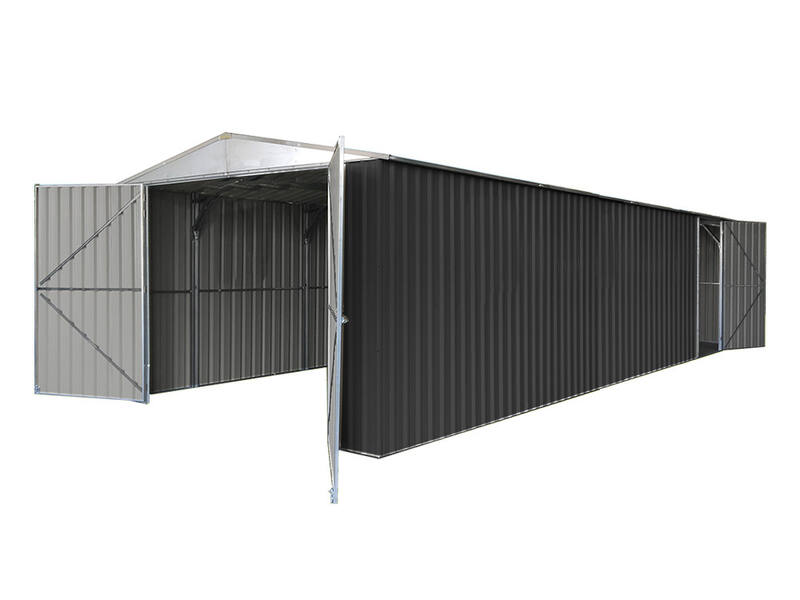

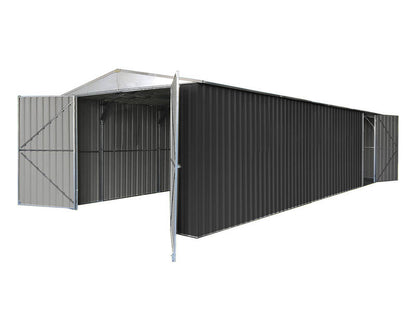

6732x3367 Large Kitset Garage with Swing Doors
AKL Stock Arrives: Early June
CGC4-FDMMB
Couldn't load pickup availability
Dimensions
Dimensions
|
External Dimension (mm) |
6732 x 3367 |
|---|---|
|
Internal Dimension (mm) |
6682 x 3317 |
|
Internal Area (㎡) |
22.16 |
|
Peak Height (mm) |
2480 |
|
Wall Height (inc foundation)(mm) |
2150 |
|
Door Opening (mm) |
2550 x 2130 |
Structure
Structure
|
Color |
Dark Grey |
|---|---|
|
Number of doors |
2 |
Warranty
Warranty
|
Warranty |
8 Years |
|---|
Assembly
Assembly
|
Anchor Kit Included |
Yes |
|---|---|
|
Floor Included |
No |
|
Manual |
- |

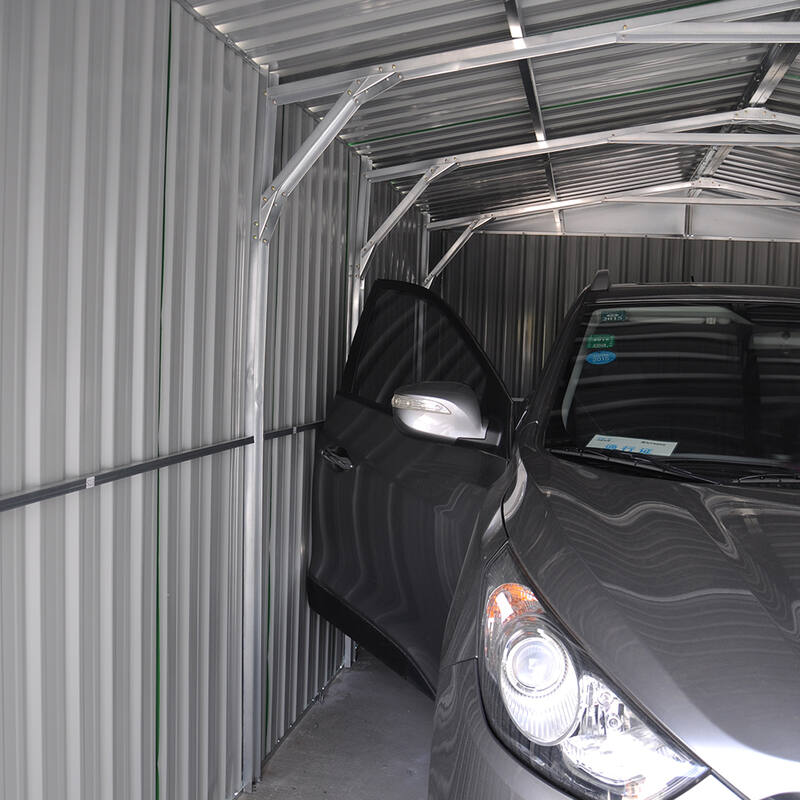

Although designed for storing cars, this garage is also good for storing goods. Why paying $100 per week for a same size storage? While all the household stuff can be stored right at the back yard with 24/7 access.
All of our Steelmates Garden Sheds are shipped directly from our own warehouse to you. No middle man means more saving.
Affordable do-it-yourself storage shed solution.
These sheds are manufactured by deep profile ribbed steel sheeting which made the shed's structural strength even stronger and also provides an attractive, durable quality for years of performance,
Product code: CGC4-FDMMB
Features:
- New improved modular design,you can pick your own set up if this does not suit.
- Strongest on the market! With roof beam 0.6mm thick cross supports.
- Deep ribbed strong 0.32mm corrugated wall and roof panels to ensure maximum security and strength
- Side access door which can be put onto either side
- 8 years warranty
(These sheds are not suitable for coastal environment. The warranty is not valid if they are within 2km of a body of salt water.)
Assembly:
Easy to assemble, easy to follow step by step assembly instruction
- Individually numbered parts for easy identification
- Pre-drilled holes
(For flooring, please leave a 30mm gap all around, the shed will sit on top of the rebate and prevent rain water comes in)
Colour: Dark Grey
We recommend fixing the garage to a concrete pad, and additional floor clamps are required in high wind zones
Base Dimension:
3367 mm (W) x 6732 mm (L) x 2480 mm (H)
Door opening dimension:
2550 mm (L) x 2130 mm (H)
Carton Sizes :
Carton A : 217x95x10cm 100KG
Carton B : 217x95x10cm 80KG
Carton C :217x95x10cm 80KG
Carton D : 217x95x10cm 105KG
Check other listings of ours for roller door garage.
