Steelmates 1.3m x 1.72m Garden Sheds Grey
YH-F04FDB-AKL
Couldn't load pickup availability
Dimensions
Dimensions
Structure
Structure
Warranty
Warranty
Assembly
Assembly
1.72m x 1.3m Metal Garden Shed for Outdoor Storage
Create a practical and organised outdoor storage space with this metal garden shed, designed for storing garden tools, outdoor equipment and household items. The door can be installed on either short side of the shed, allowing the roof slope to be positioned either upward or downward to better suit your installation requirements.
We are one of the first companies importing garden sheds into New Zealand. With years of experience, we understand the strengths and limitations of different garden sheds, as well as what New Zealanders expect from a reliable outdoor storage solution. While imported sheds are often more affordable, many are not designed to withstand New Zealand's harsh sunlight, wind, rain and snow. Locally made sheds are typically stronger but more expensive and can be difficult to assemble without professional assistance.
Why Choose This Garden Shed?
- Door can be installed on either short side for greater installation flexibility
- Double-folded 0.5mm steel major frames provide added strength and durability
- 0.32mm steel panels offer reliable structural performance
- Side-wall-first assembly design helps simplify installation
- Combination of screws and rivets balances faster assembly with a stronger structure
Ideal for Outdoor Storage
This garden shed is suitable for storing garden tools, outdoor equipment and general household items while helping keep your outdoor area organised. Its flexible door position also makes it easier to suit different backyard layouts.
Features
- Double-folded 0.5mm steel major frames provide an effective 1mm structural thickness for increased strength.
- 0.32mm steel sheets for improved durability.
- Side walls can be assembled indoors before being moved into position, leaving only the roof panels to be installed on site.
- Screws are used to fasten the wall panels for faster installation, while rivets reinforce the frame and door for additional strength.
- Door can be fitted on either short side, allowing the roof slope to face either direction.
- Floor is not included. A floor plan is available.
Important Notes
Please note:
- This shed is not suitable for coastal environments.
- The warranty is not valid if the shed is installed within 2km of a body of salt water.
- For flooring, please leave a 30mm gap around the perimeter. The shed sits on top of the rebate to help prevent rainwater from entering.
- Floor is not included, although a floor plan is available.
Specifications

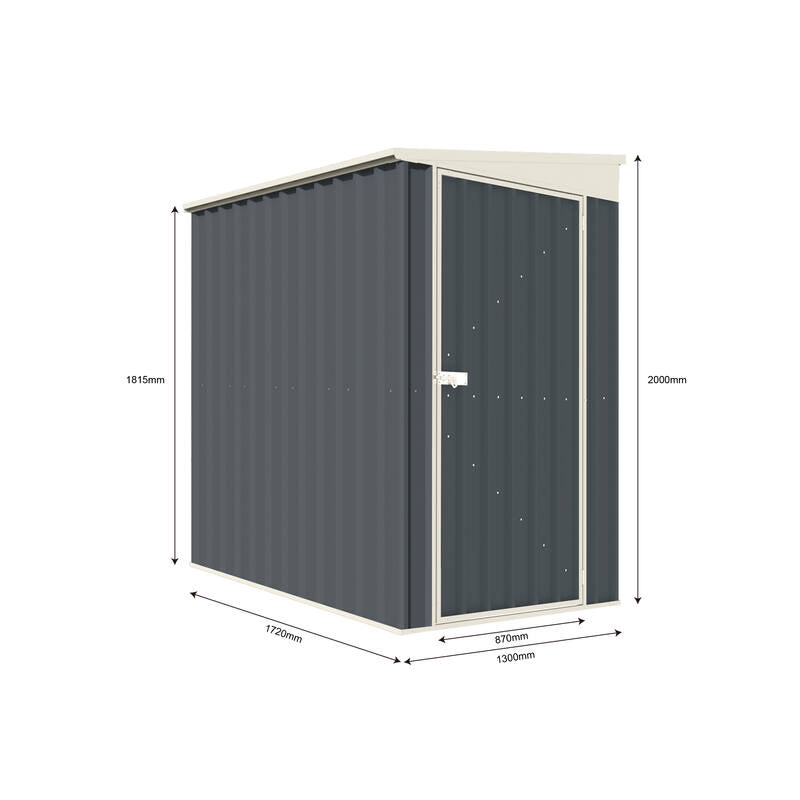

Base Dimensions: 1720 × 1300 × 2000mm (L × D × H)
Door Width: 870mm
Main Frame: Double-folded 0.5mm steel
Panel Thickness: 0.32mm steel
Color: Dark Grey
Warranty: 8 years
Carton A: 203 × 93 × 7cm 36kg
Carton B: 203 × 93 × 7cm 30kg
Explore more narrow garden shed options
-
Stronger Frame
Designed with strength and quality in mind, our sheds use top quality colorsteel. All of our sheds are fitted with a line of bracings around the height of the wall. For large sheds, there is arch support extending all the way to the ground.
-
2m Tall Walls
Steelmates garden shed has a minimum height of 2 meters for wall and door, which is the lowest height of the whole garden shed. There is robust headroom and allows you to move freely inside the garden shed.
-
Steel Thickness
Most garden sheds use 0.22–0.25mm steel, while Steelmates uses a thicker 0.32mm steel — around 1.4× thicker than average. This added thickness delivers superior strength, rust resistance, and long-lasting durability in all weather conditions.
-
Free Anchor Kits
Every Steelmates garden shed includes a free anchor kit, keeping your shed secure in all weather and saving you the cost of buying anchors separately.
Shed Foundation Basics
A foundation is essential for a garden shed because it keeps the structure stable, level, and securely anchored. It also raises the shed off the ground to prevent moisture damage, leaks, and door alignment issues over time.
